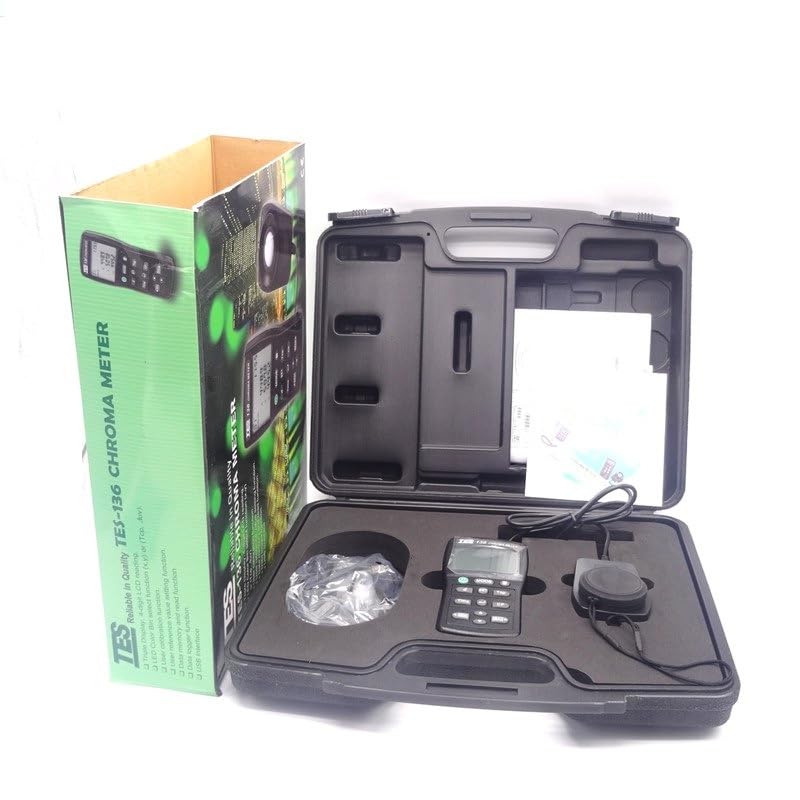

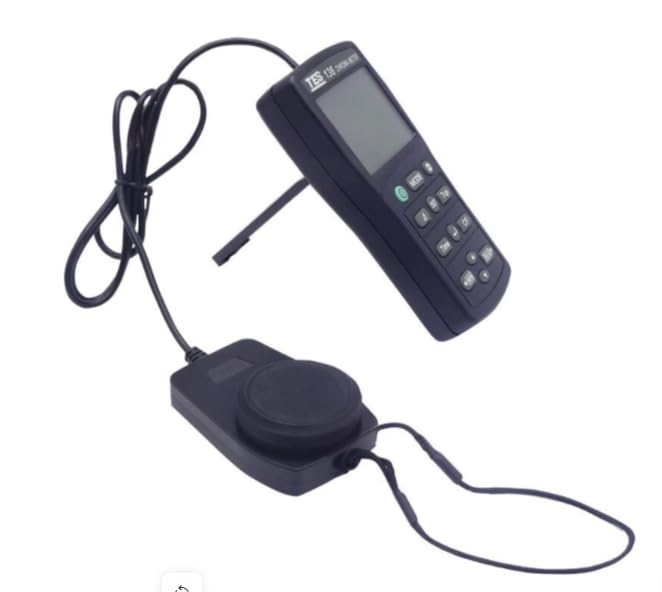

Color Temperature illuminance Meter TES-136 Colorimeter/Colorimeter

Experience professional-grade color analysis with the TES-136 illuminance meter and colorimeter. This versatile 3-in-1 instrument provides highly accurate measurements of light level, correlated color temperature, and chromaticity coordinates for precise illumination and color quality control. The wide 0.1-99990 lux illuminance range covers everything from low ambient light to high-intensity discharge lamps with ±3% precision. Selectable LED measurement mode handles the entire LED CCT span from 2300K to 20000K. Chromaticity coordinates are measured to tight ±0.003 xy repeatability. Optimized for field use, the lightweight 150x72x35mm meter runs on batteries for over 100 hours. User calibration, CIE f’1 ≤ 8 flicker accuracy, humidity resistance, and data logging to the built-in 4GB microSD card provide reliable results you can count on. With quick 1 second readings, backlit LCD display, and USB connectivity, the TES-136 combines lab-grade performance with simple operation. It's ideal for designers, engineers, and technicians evaluating lighting, calibrating displays, matching colors, and more. Key Specs: - 0.1-99990 Lux Range - 2300-20000K CCT Range - ±3% Illuminance Accuracy - ±0.003 xy Repeatability - 4GB microSD Card - USB Connectivity - 100 Hour Battery Life

• ✅ Accurate triple display of color parameters. The 4-digit LCD shows illuminance, correlated color temperature (CCT), and chromaticity coordinates (x,y). Measure light sources precisely with ±3% accuracy on illuminance and tight xy repeatability of ±0.003.
• ✅Portable and versatile for field use. Compact 150x72x35mm size easily fits in a bag or case. Runs on battery power for mobile light testing. Suitable for diverse applications like lighting design, color matching, display calibration, and more.
• ✅ User calibration and reference value functions. Conveniently calibrate the meter and save custom reference values for your specific needs. Optimize the meter for your measurement tasks.
• ✅Data logging and PC interface. Log continuous data to the built-in 4GB microSD card. USB connectivity lets you transfer results to a computer for further analysis. Review data trends easily.
• ✅LED and wide CCT measurement. Selectable LED measurement mode covers the whole LED CCT range. Large 2300-20000K overall CCT range works for any light source.
• ✅ Temperature and humidity stability. Maintains ±5% illuminance and ±0.008 xy accuracy over the rated 0-50°C temperature range. Minimizes deviations.
• ✅CIE f’1 ≤ 8 photometric accuracy. Meets CIE Class AA spectral matching requirements for flicker photometry. Reliable results for any light modulation. (If you have any questions, please feel free to contact me via email (huangzhijun2023@yeah.net))
